Y-Offset Connector 25mm — digital file for 3D Printing (STL) — DIY BY BRAS

⚠️ Digital product only

This product is a digital file for 3D printing.
No physical item will be shipped.
You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

Prefer a ready-to-use part?

→ This piece is also available as a physical 3D-printed product, ready to ship.

Y-Offset Connector 25mm — DIY BY BRAS

This digital file allows you to 3D print the Offset Y Connector 25mm designed for the DIY BY BRAS modular system.
It is intended for makers, workshops, schools, and musicians equipped with a 3D printer.

What you get

– 1 × STL file (Offset Y Connector 25mm), 1 × printing instructions PDF, and 1 × modular flute blueprint & assembly PDF

Product description

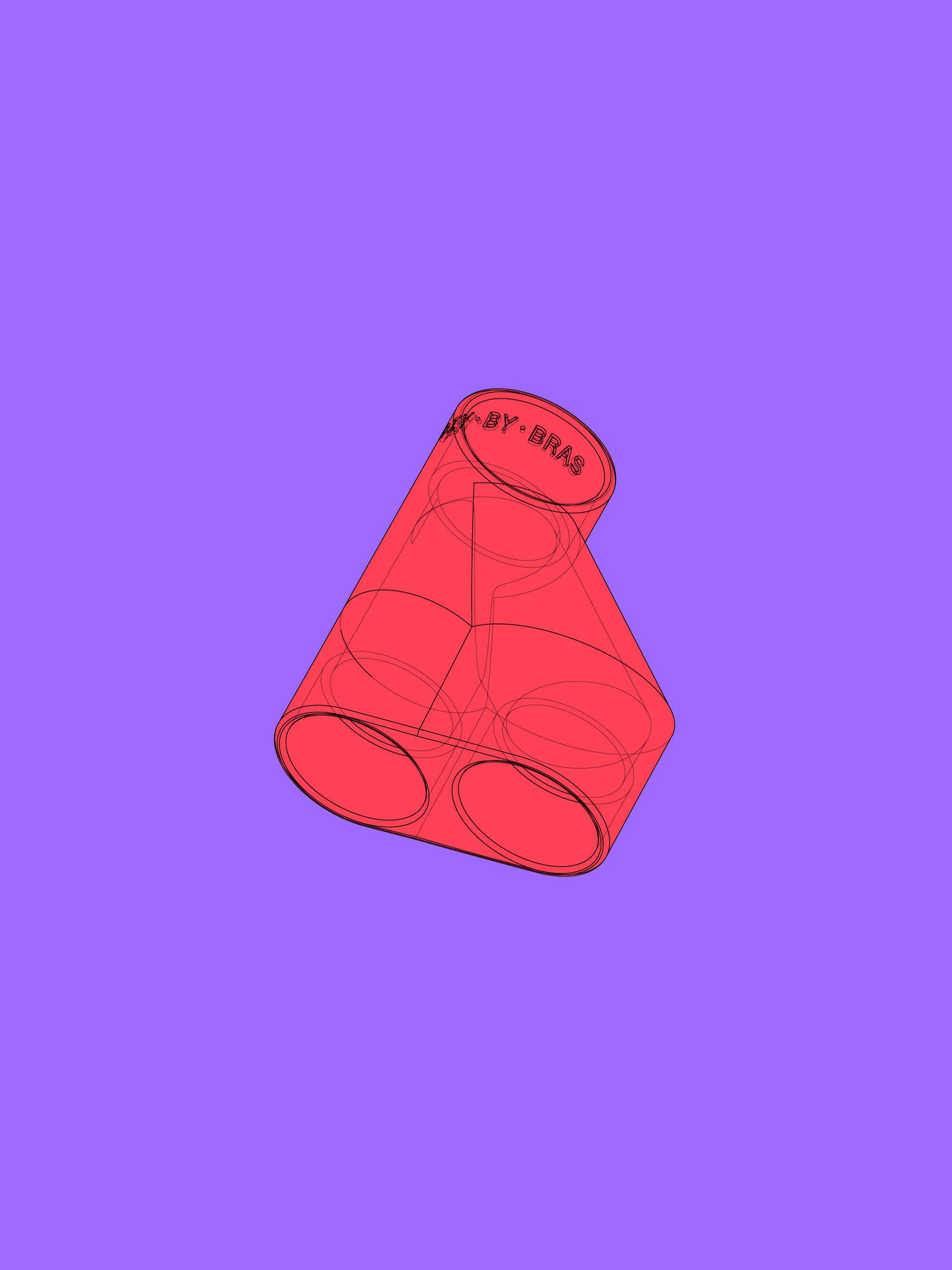

The Offset Y Connector 25mm is a splitter part designed for the DIY BY BRAS modular system.

It is used to divide a single airflow into two separate directions while keeping one of the outputs aligned with the original pipe axis.
This allows you to split the airflow without shifting the main pipe alignment, making it especially useful for modular multi-flute assemblies where parallel pipe positioning and compact layouts are required.

This design enables the creation of double flutes, drone systems, and complex modular instruments while preserving structural alignment and ergonomic pipe positioning.

The design focuses on balanced airflow distribution, mechanical reliability, precise alignment, and airtight connection, ensuring consistent performance across repeated assemblies and disassemblies.

Pipe compatibility

– PVC IRL pipes (European standard)
– Designed for 25 mm outside diameter pipes

⚠️ Please check your pipe diameter before ordering

License included

Allowed use:
– Personal use
– Educational and workshop use

Not allowed:
– Resale of the file
– Resale of printed parts made from this file
– Distribution of the file in any form

If you need a commercial license, please contact us.
