S-Connector 25mm — digital file for 3D Printing (STL) — DIY BY BRAS

⚠️ Digital product only

This product is a digital file for 3D printing.
No physical item will be shipped.
You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

Prefer a ready-to-use part?

→ This piece is also available as a physical 3D-printed product, ready to ship.

S-Connector 25mm — DIY BY BRAS

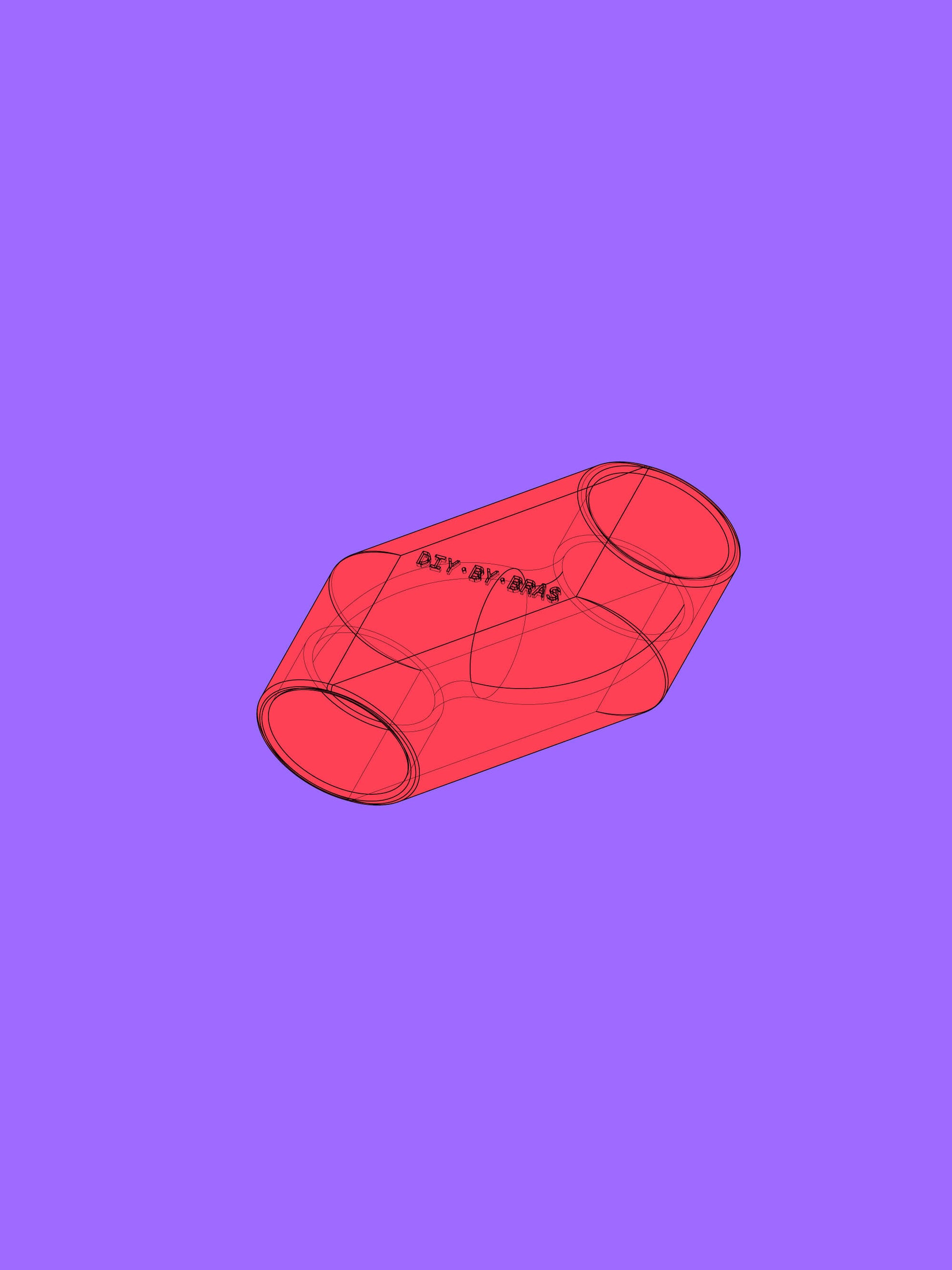

This digital file allows you to 3D print the S-Sleeve 25mm designed for the DIY BY BRAS modular system.
It is intended for makers, workshops, schools, and musicians equipped with a 3D printer.

What you get

– 1 × STL file (S-Sleeve 25mm), 1 × printing instructions PDF, and 1 × modular flute blueprint & assembly PDF

Product description

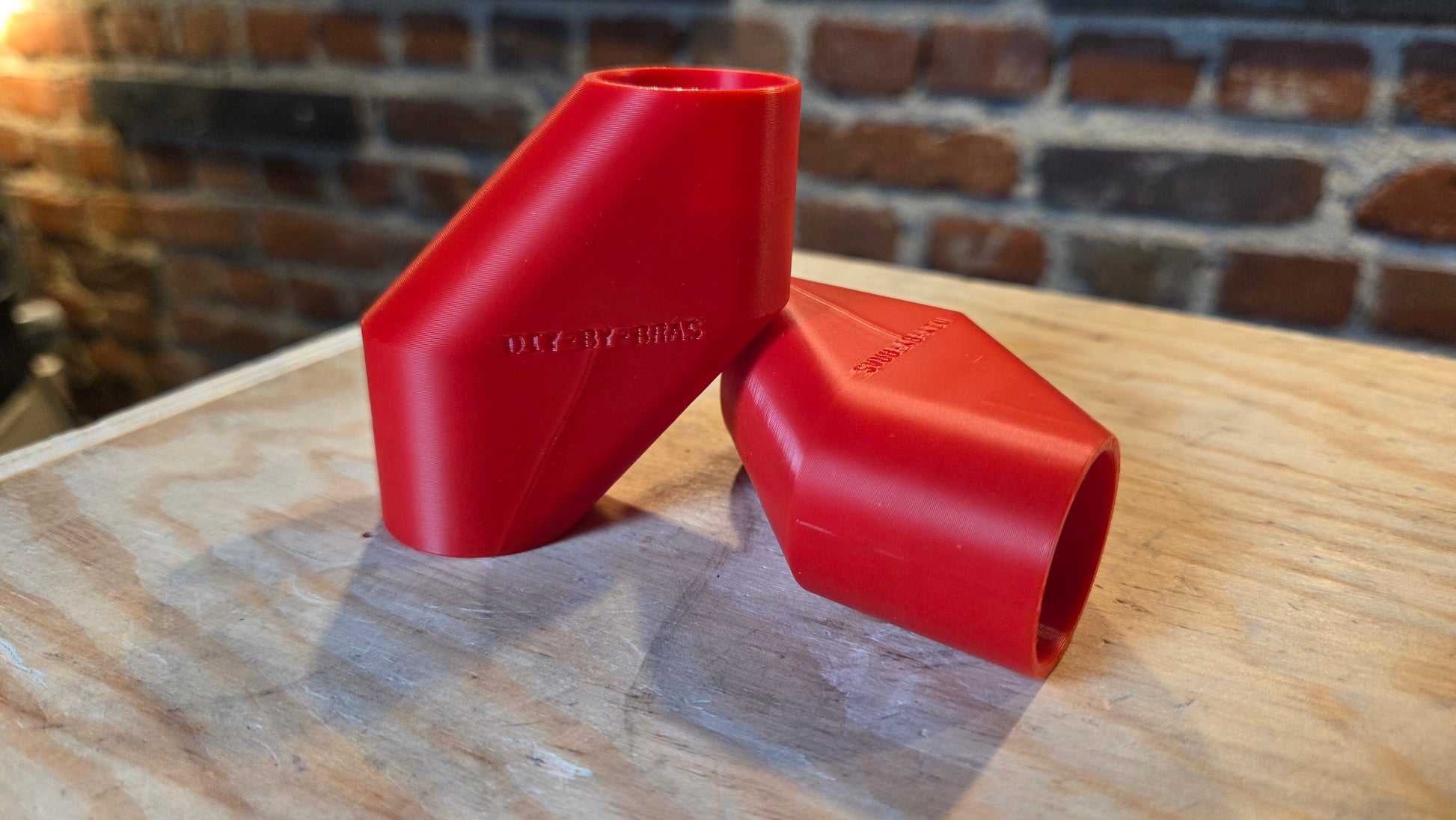

The S-Sleeve 25mm is a connector part designed for the DIY BY BRAS modular system.

It is used to connect two pipe sections while creating a lateral offset in an S shape, allowing one pipe to shift sideways relative to the other while maintaining proper alignment and airtightness.
This part is especially useful for multi-flute assemblies, parallel pipe configurations, and complex modular layouts where precise spacing between pipes is required.

The design focuses on mechanical reliability, precise alignment, and airtight connection, ensuring consistent performance across repeated assemblies and disassemblies.

Dimensions & weight

– Dimensions: 85 x 60 x 30 mm
– Weight: 30g

Pipe compatibility

– PVC IRL pipes (European standard)
– Designed for 25 mm outside diameter pipes

⚠️ Please check your pipe diameter before ordering

License included

Allowed use:
– Personal use
– Educational and workshop use

Not allowed:
– Resale of the file
– Resale of printed parts made from this file
– Distribution of the file in any form

If you need a commercial license, please contact us.
