Overtone Flute Kit 25mm Bundle — DIY BY BRAS

All components included in this bundle are also available individually as STL files and physical parts.

The Overtone Flute Kit 25mm Bundle is the complete bundle  to build all the Overtone Flute models.

Designed around standard 25mm and 16mm PVC pipes and interchangeable 3D-printed components, it provides everything needed to build overtone flutes, extended overtone flutes, fujara-style instruments, and a wide variety of experimental wind instruments.

Included: Detailed blueprints and instructions for assembly, and tuning, providing everything needed to build complete instruments and explore your own ideas using standard 25mm and 16mm PVC pipe.

The bundle brings together the core building blocks of the system: Overtone Flute Heads, Mouthpieces, Rings, Sleeves, and Connectors. These parts can be freely combined, modified, and reconfigured to explore countless instrument designs.

IMPORTANT:
The actual diameter of 25mm and 16mm PVC pipes can vary slightly depending on manufacturer and production batch. To ensure compatibility with the widest range of pipes, DIY BY BRAS parts are designed slightly oversized. While our finished instruments are individually adjusted to match our current pipe stock, DIY parts must remain adaptable to many different pipe sources. For optimal performance, an airtight seal is required. Simply wrap transparent adhesive tape around the pipe to create a custom-fit seal before inserting it into the printed part.

Choose your version

This product is available either as 7 Downloadable Digital Files (STL) for self-printing, 9 Ready-to-Use Parts, carefully 3D printed in our workshop and shipped to your home, or 9 Ready-to-Use Parts + 25mm pipe x 8 meters + 16mm pipe x 1 meter, including enough material to build complete instruments and explore your own variations and ideas.

Digital Files (7 3D Printing STL Files)

⚠️ Digital products only, no physical item will be shipped.

You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

What you get:

– STL file - Simple Mouthpiece 16mm - DIY BY BRAS
– STL file - 90° Connector 16mm - DIY BY BRAS
– STL file - Double Ring 25-16mm - DIY BY BRAS
– STL file - U-Connector 180° 25-16mm - DIY BY BRAS
– STL file - Overtone Flute Head 25mm - DIY BY BRAS
– STL file - Overtone Flute Head with Connector 25mm - DIY BY BRAS
– STL file - Sleeve Connector 25mm - DIY BY BRAS
– Individual Printing Instructions PDFs for all included parts
– Blueprint & Assembly PDF: 25mm Overtone Flute kit

License included

Allowed use: Personal use / educational and workshop use

Not allowed: Resale of the file / Resale of printed parts or instruments made from this file / Distribution of the file in any form

If you need a commercial license, please contact us.

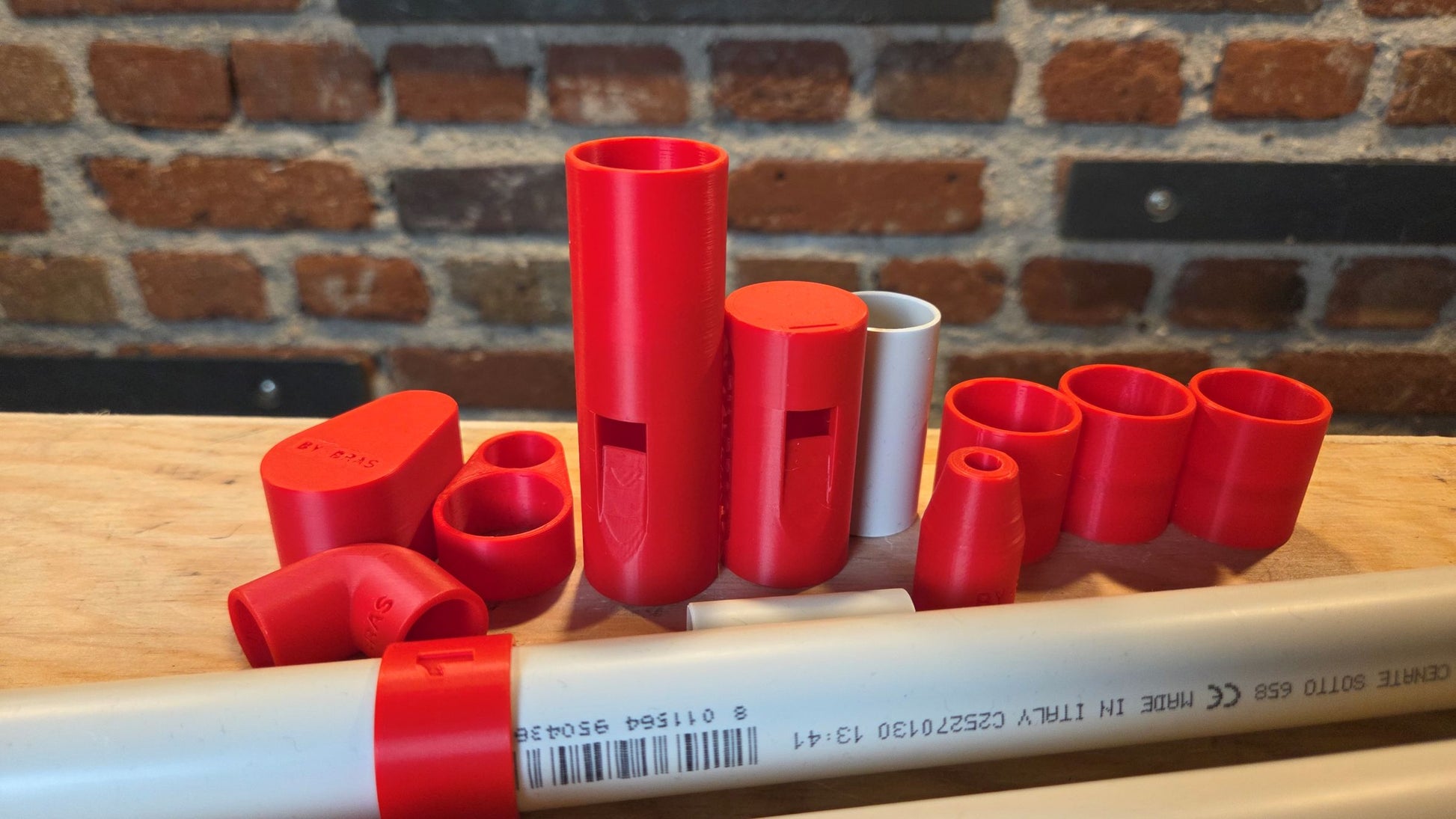

Ready-to-Use Physical Parts, 9 parts

What you get:

– 1x 3D-printed Simple Mouthpiece 16mm - DIY BY BRAS
– 1x 3D-printed 90° Connector 16mm - DIY BY BRAS
– 1x 3D-printed Double Ring 25-16mm - DIY BY BRAS
– 1x 3D-printed U-Connector 180° 25-16mm - DIY BY BRAS
– 1x 3D-printed Overtone Flute Head 25mm - DIY BY BRAS
– 1x 3D-printed Overtone Flute Head with Connector 25mm - DIY BY BRAS
– 3x 3D-printed Sleeve Connector 25mm - DIY BY BRAS
– 2x Roll of transparent tape for creating a custom airtight seal
– Blueprint & Assembly PDF: 25mm Overtone Flute kit

– 9 3D-printed parts weight: 96 g

Ready-to-Use Physical Parts 9 parts + 9 meters of compatible pipes

The same 9 ready-to-use 3D-printed parts, and 25mm pipe: 8 meters + 16mm pipe: 1 meter, providing everything needed to start building immediately.

– 9 3D-printed parts weight +9m pipe: 1386 g

Pipe Compatibility

– PVC IRL pipes (European standard)
– Compatible diameter: 25 mm outside diameter, 1.6 mm wall thickness / 16 mm outside diameter, 1.6 mm wall thickness

⚠️ Please check your pipe diameter before ordering
