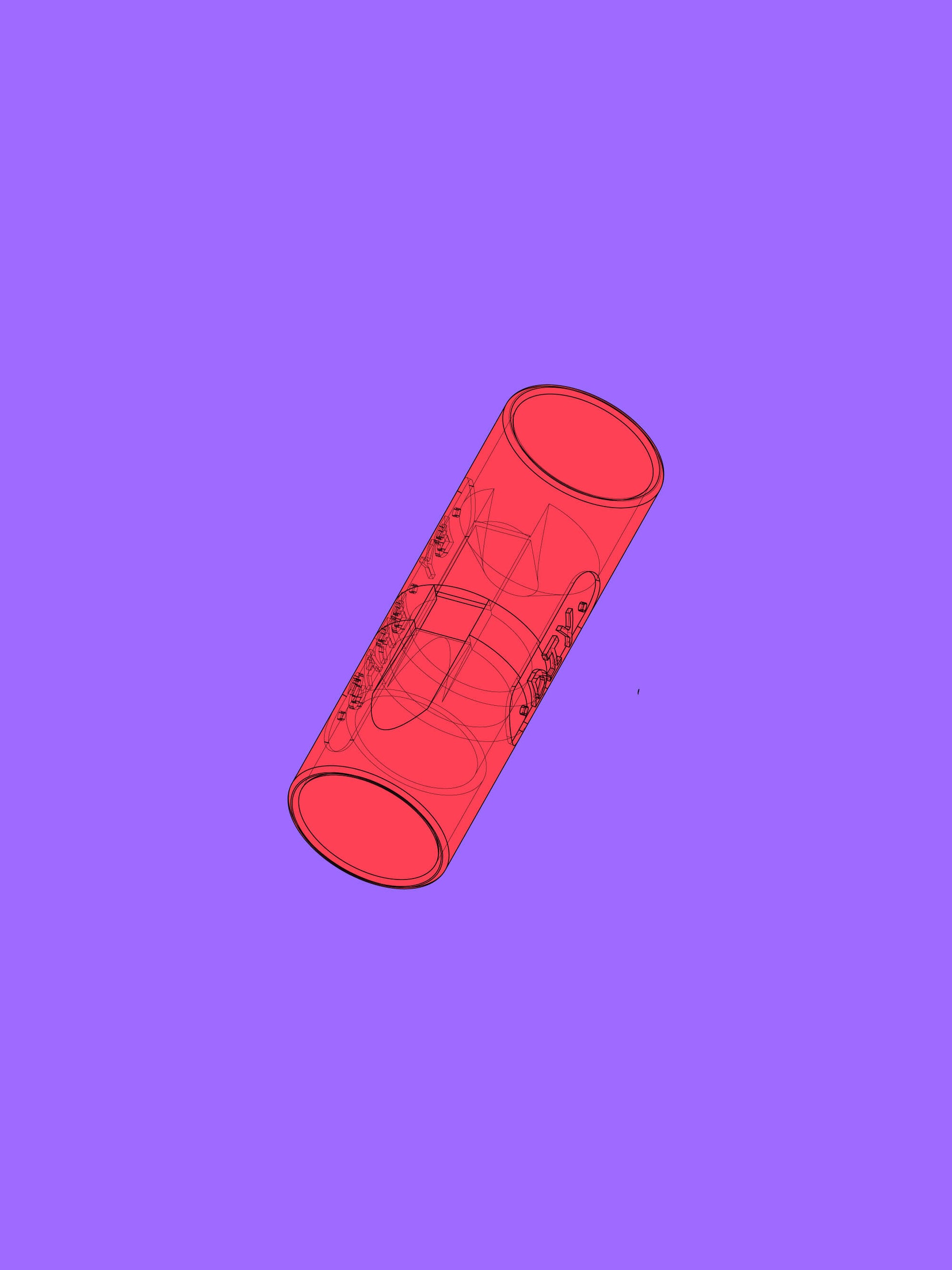

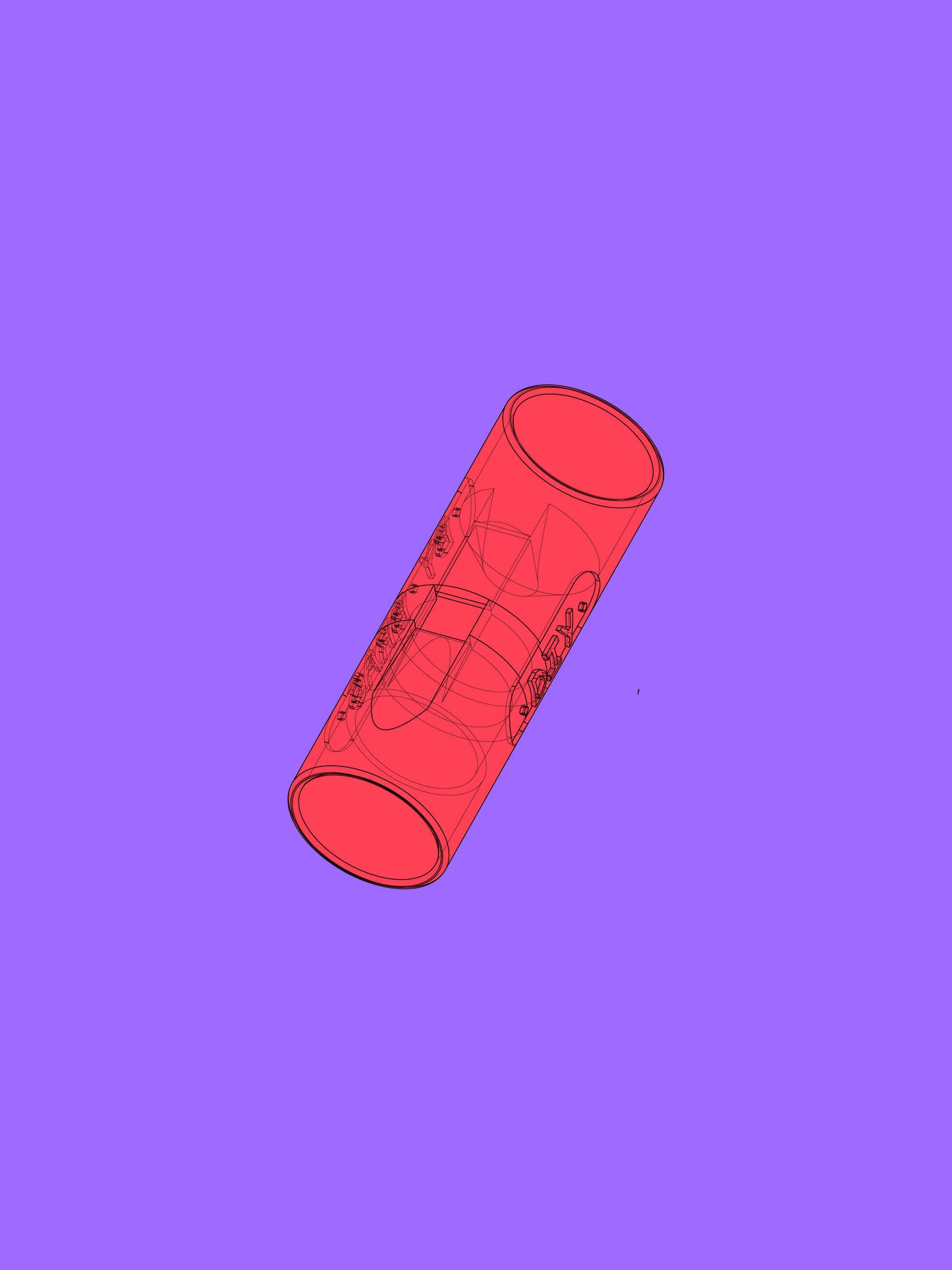

Overtone Flute Head with Connector 25mm — digital file for 3D Printing (STL) — DIY BY BRAS

⚠️ Digital product only

This product is a digital file for 3D printing.
No physical item will be shipped.
You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

Prefer a ready-to-use part?

→ This piece is also available as a physical 3D-printed product, ready to ship.

Overtone Flute Head with Connector 25mm — DIY BY BRAS

This part is included in the 25mm Overtone Flute Bundle

This digital file allows you to 3D print the Overtone Flute Head with Connector 25mm designed for the DIY BY BRAS modular system.
It is intended for makers, workshops, schools, and musicians equipped with a 3D printer.

What you get

– 1 × STL file (Overtone Flute Head with Connector 25mm), 1 × printing instructions PDF, and 1 × overtone flute blueprint & assembly PDF

Product description

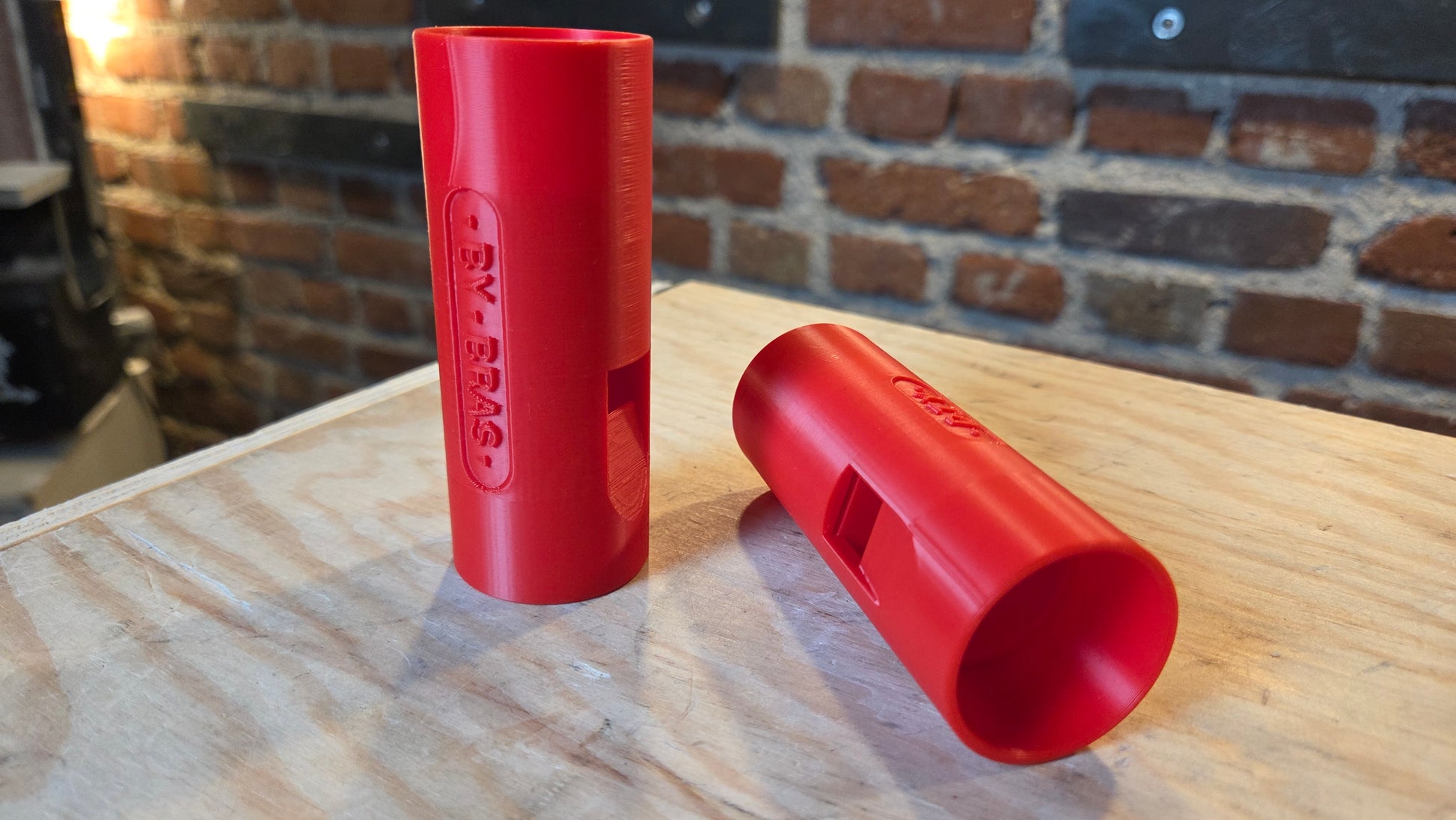

The Overtone Flute Head with Connector 25mm is a 3D-printed flute head designed for the DIY BY BRAS modular system, inspired by traditional overtone flutes and recorder-style mouthpieces.

Why “with connector”

The “with connector” design allows the head to be connected using a 25 mm pipe, making it compatible with multiple mouthpieces, splitters, and modular connectors.

This makes it possible to integrate the overtone flute head into double, triple, or more complex modular configurations, or to connect it to external mouthpieces and airflow systems, while keeping full compatibility with the DIY BY BRAS ecosystem.

Design & features

– 3D-printed part (PLA)
– Recorder-style mouthpiece for immediate sound production
– 25 mm connector for modular airflow routing
– Compatible with multi-mouthpiece and splitter systems
– Fully compatible with the DIY BY BRAS modular system
– Lightweight, durable, and moisture-resistant

Dimensions & weight

– Dimensions: 88 × 29 × 29 mm
– Weight: 33 g

Pipe compatibility

– PVC IRL pipes (European standard)
– Compatible diameter: 25 mm outside diameter, 1.6 mm wall thickness
– Air connection via 25 mm pipe

⚠️ Please check your pipe diameter before ordering.

License included

Allowed use:
– Personal use
– Educational and workshop use

Not allowed:
– Resale of the file
– Resale of printed parts made from this file
– Distribution of the file in any form
