Overtone Flute Head 100mm — DIY BY BRAS

The Overtone Flute Head 100mm is a sound-producing head designed for the DIY BY BRAS system.

Included: Detailed blueprints and instructions for assembly and experimentation, providing everything needed to explore oversized overtone-style instruments using standard 100mm PVC pipe.

Inspired by traditional overtone flutes but intentionally pushed far beyond their usual dimensions, this head has been specifically developed for 3D printing and large-scale instrument experimentation.

It can be seen as a giant extension of the Overtone Flute concept. While it does not correspond to any known traditional instrument, it explores what happens when the dimensions of an overtone flute are taken to an extreme scale. The result is a unique instrument with its own character, opening the door to a wide range of sounds, playing techniques, and acoustic experiments.

The digital version includes both versions of the Overtone Flute Head 100mm, with and without connector.

IMPORTANT:
The actual diameter of 100mm PVC pipes can vary slightly depending on manufacturer and production batch. To ensure compatibility with the widest range of pipes, DIY BY BRAS parts are designed slightly oversized. While our finished instruments are individually adjusted to match our current pipe stock, DIY parts must remain adaptable to many different pipe sources. For optimal performance, an airtight seal is required. Simply wrap transparent adhesive tape around the pipe to create a custom-fit seal before inserting it into the printed part.

Choose your version

This product is available either as Downloadable Digital Files (STL) for self-printing or as a Ready-to-Use Part, carefully 3D printed in our workshop and shipped to your home.

Digital Files (2 3D Printing STL Files)

⚠️ Digital products only, no physical item will be shipped.

You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

What you get:

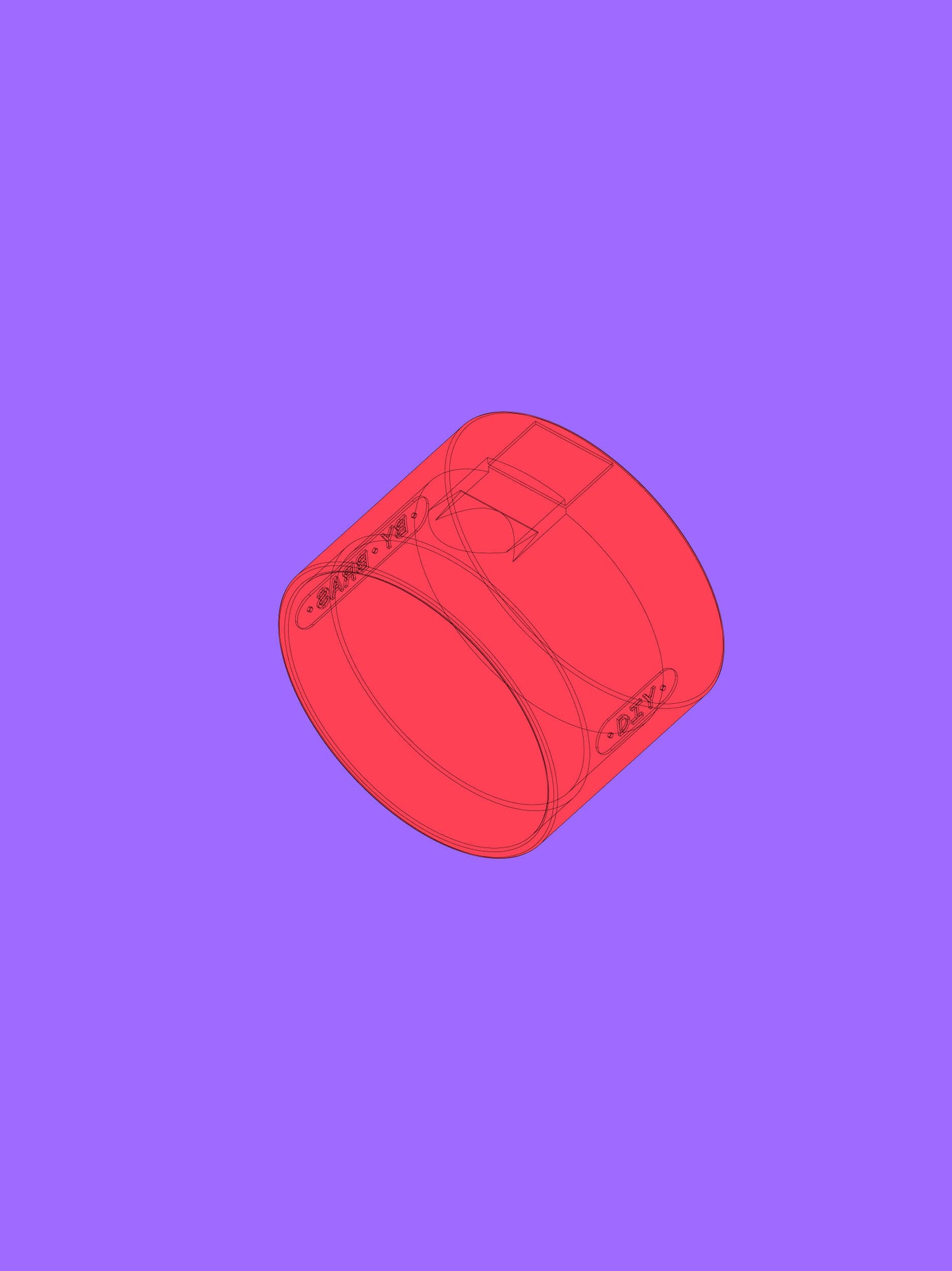

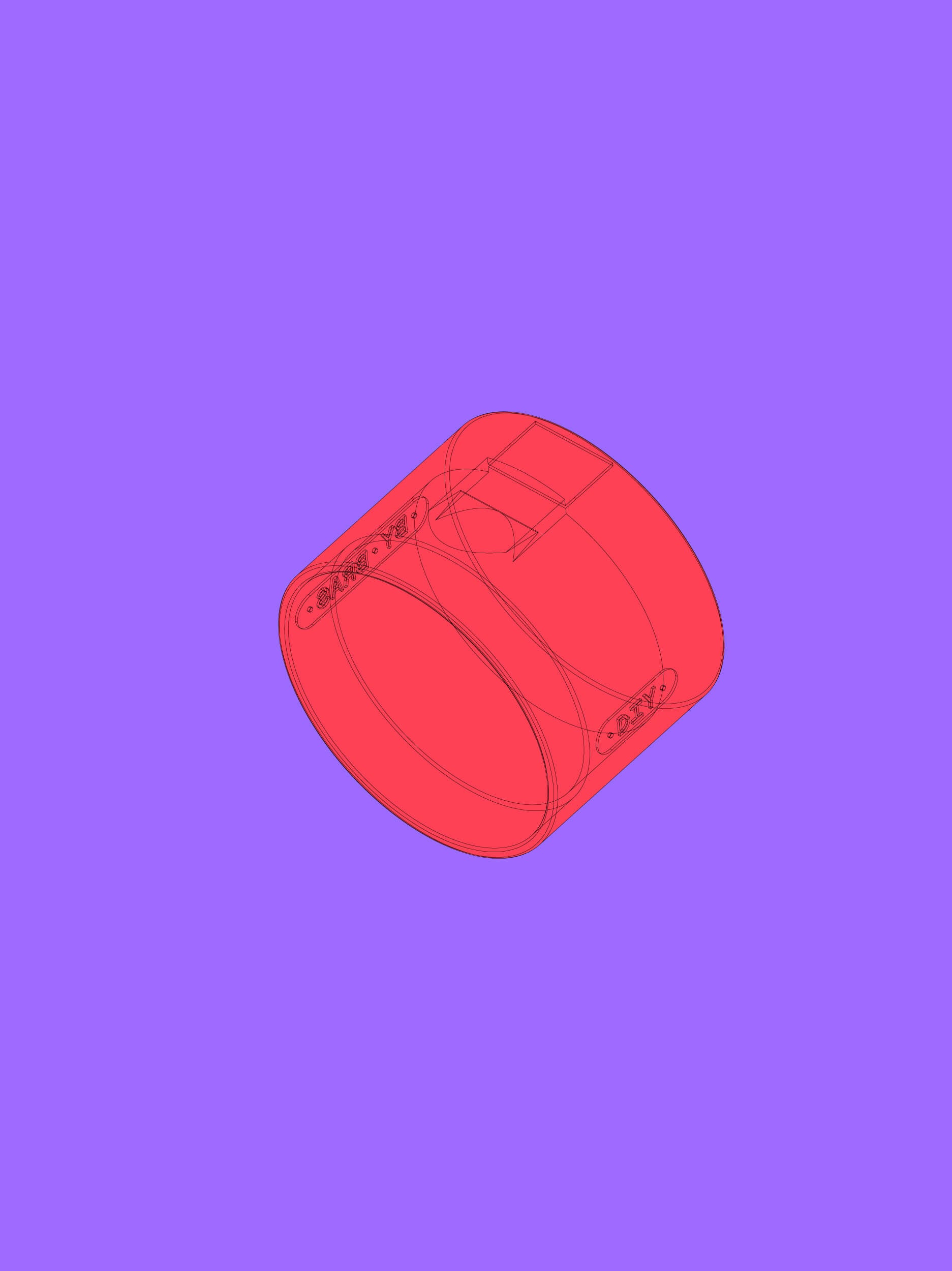

– STL file - Overtone Flute Head 100mm - DIY BY BRAS

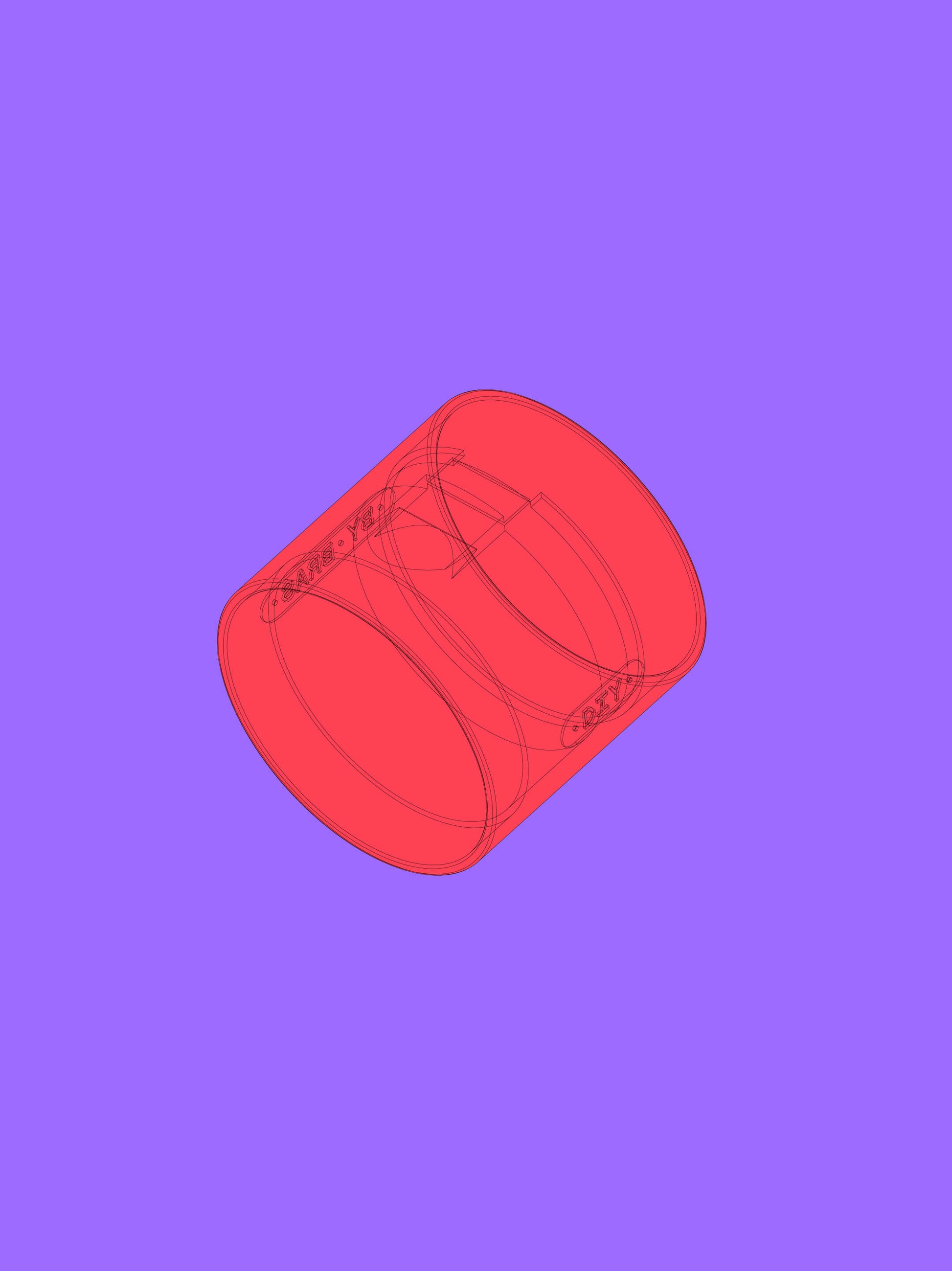

– STL file - Overtone Flute Head with Connector 100mm - DIY BY BRAS
– Printing Instructions PDF
– Blueprint & Assembly PDF : Building Very Bass Overtone Flute A

License included

Allowed use: Personal use / educational and workshop use

Not allowed: Resale of the file / Resale of printed parts or instruments made from this file / Distribution of the file in any form

If you need a commercial license, please contact us.

Ready-to-Use Physical Part :

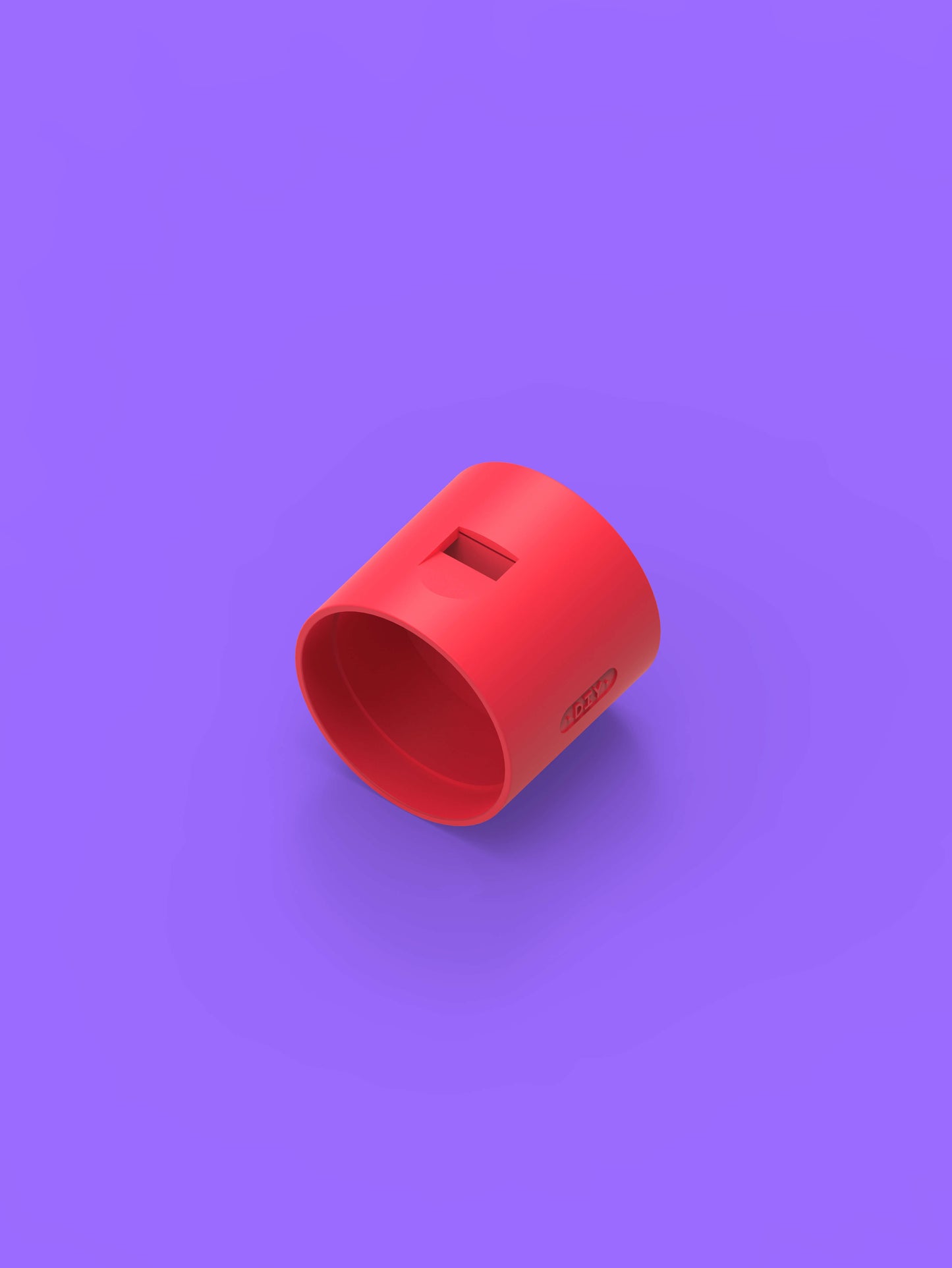

Overtone Flute Head with Connector 100mm - DIY BY BRAS

What you get:

– 1x Overtone Flute Head with Connector 100mm - DIY BY BRAS
– 1x Roll of transparent tape for creating a custom airtight seal
– Modular Flute Blueprint & Assembly PDF : Building Very Bass Overtone Flute A

Dimensions & Weight

– Dimensions: 108 × 108 × 99 mm
– Weight: 185 g

Ready-to-Use Physical Part :

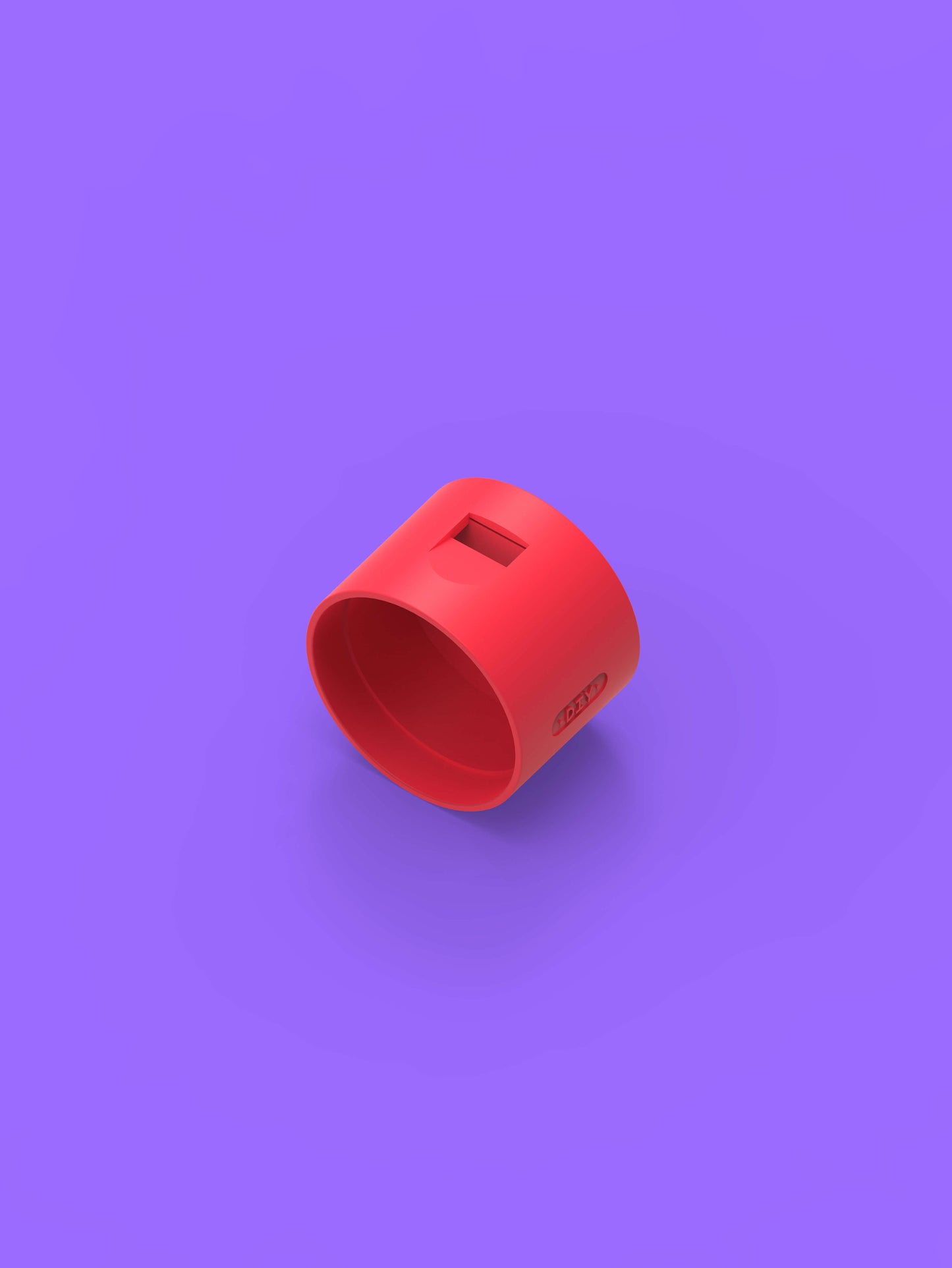

Overtone Flute Head 100mm - DIY BY BRAS

What you get:

– 1x Overtone Flute Head 100mm - DIY BY BRAS
– 1x Roll of transparent tape for creating a custom airtight seal
– Modular Flute Blueprint & Assembly PDF : Building Very Bass Overtone Flute A

Dimensions & Weight

– Dimensions: 108 × 108 × 79 mm
– Weight: 155 g

Pipe Compatibility

– PVC IRL pipes (European standard)
– Compatible diameter: 100 mm outside diameter, 2.0 mm wall thickness

⚠️ Please check your pipe diameter before ordering
