U-Connector 180° 25-16mm — digital file for 3D Printing (STL) — DIY BY BRAS

⚠️ Digital product only

This product is a digital file for 3D printing. No physical item will be shipped. You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

Prefer a ready-to-use part?

→ This piece is also available as a physical 3D-printed product, ready to ship.

DIY U-Connector 180° 25-16mm — STL File

This part is included in the 25mm Overtone Flute Bundle

This digital file allows you to 3D print the U-Connector 180° 25-16mm designed for the DIY BY BRAS modular system.

It is intended for makers, workshops, schools, and musicians equipped with a 3D printer.

What you get

– 1 × STL file (U-Connector 180° 25-16mm) – 1 × printing instructions PDF

Product description

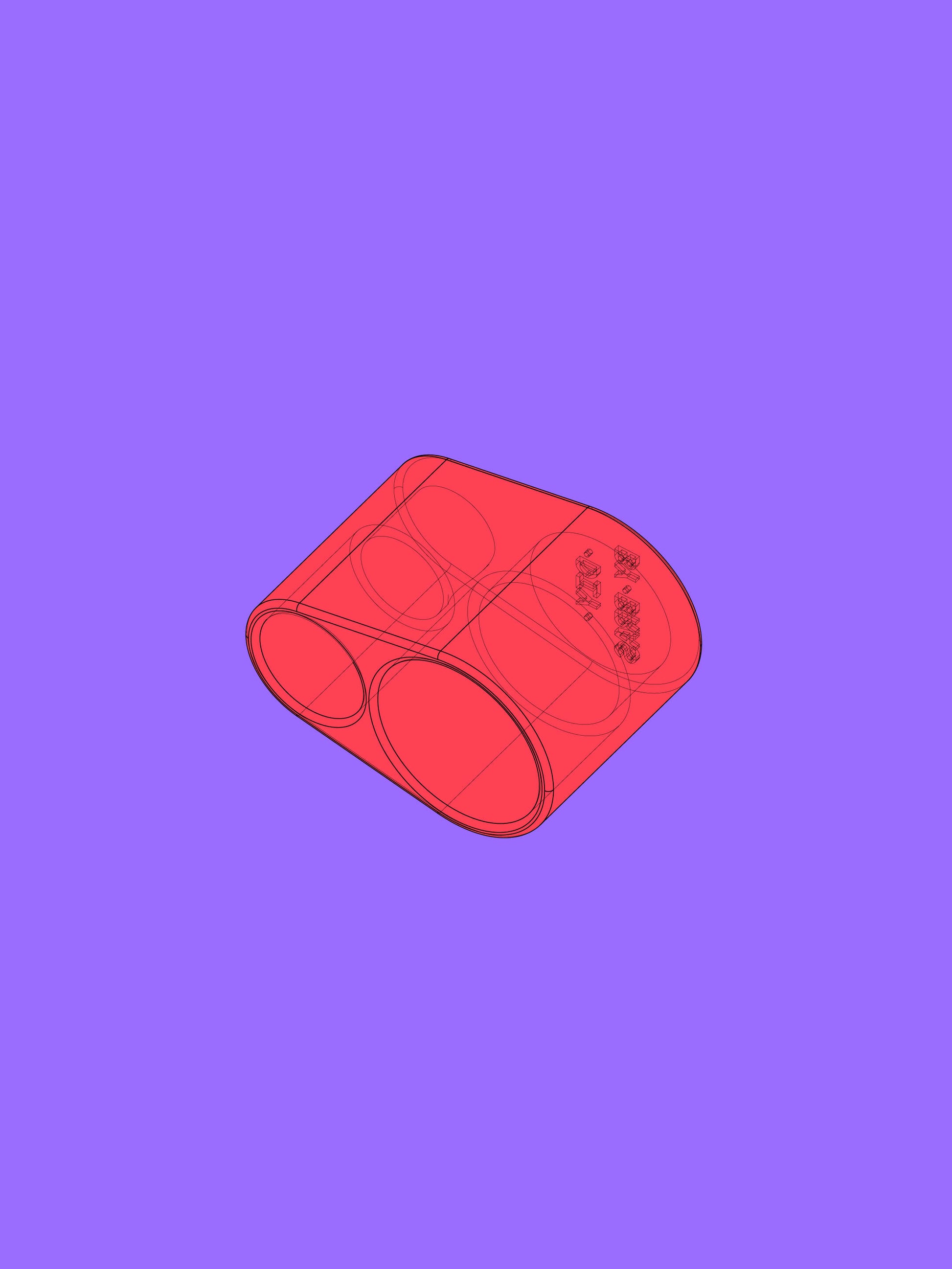

The U-Connector 180° 25-16mm is a 3D-printed air redirection component designed for the DIY BY BRAS modular system.

It allows airflow to be redirected from a 25mm pipe into a 16mm air conduct, enabling fujara-style configurations and extended overtone setups.

The design ensures smooth airflow, minimizing turbulence while maintaining stable pressure and response.

Dimensions & weight

– Dimensions: 4.8 × 2.9 × 3.3 cm – Weight: 16 g

Pipe compatibility

– PVC IRL pipes (European standard) – Designed for 25 mm outer diameter (main pipe) – Designed for 16 mm outer diameter (air conduct)

⚠️ Please check your pipe diameter before printing

License included

Allowed use: – Personal use – Educational and workshop use

Not allowed: – Resale of the file – Resale of printed parts made from this file – Distribution of the file in any form

If you need a commercial license, please contact us.
