90° Connector 16mm — digital file for 3D Printing (STL) — DIY BY BRAS

⚠️ Digital product only

This product is a digital file for 3D printing. No physical item will be shipped. You must own a 3D printer or have access to a local FabLab or makerspace to use this product.

Prefer a ready-to-use part?

→ This piece is also available as a physical 3D-printed product, ready to ship.

DIY 90° Connector 16mm — STL File

This part is included in the 25mm Overtone Flute Bundle

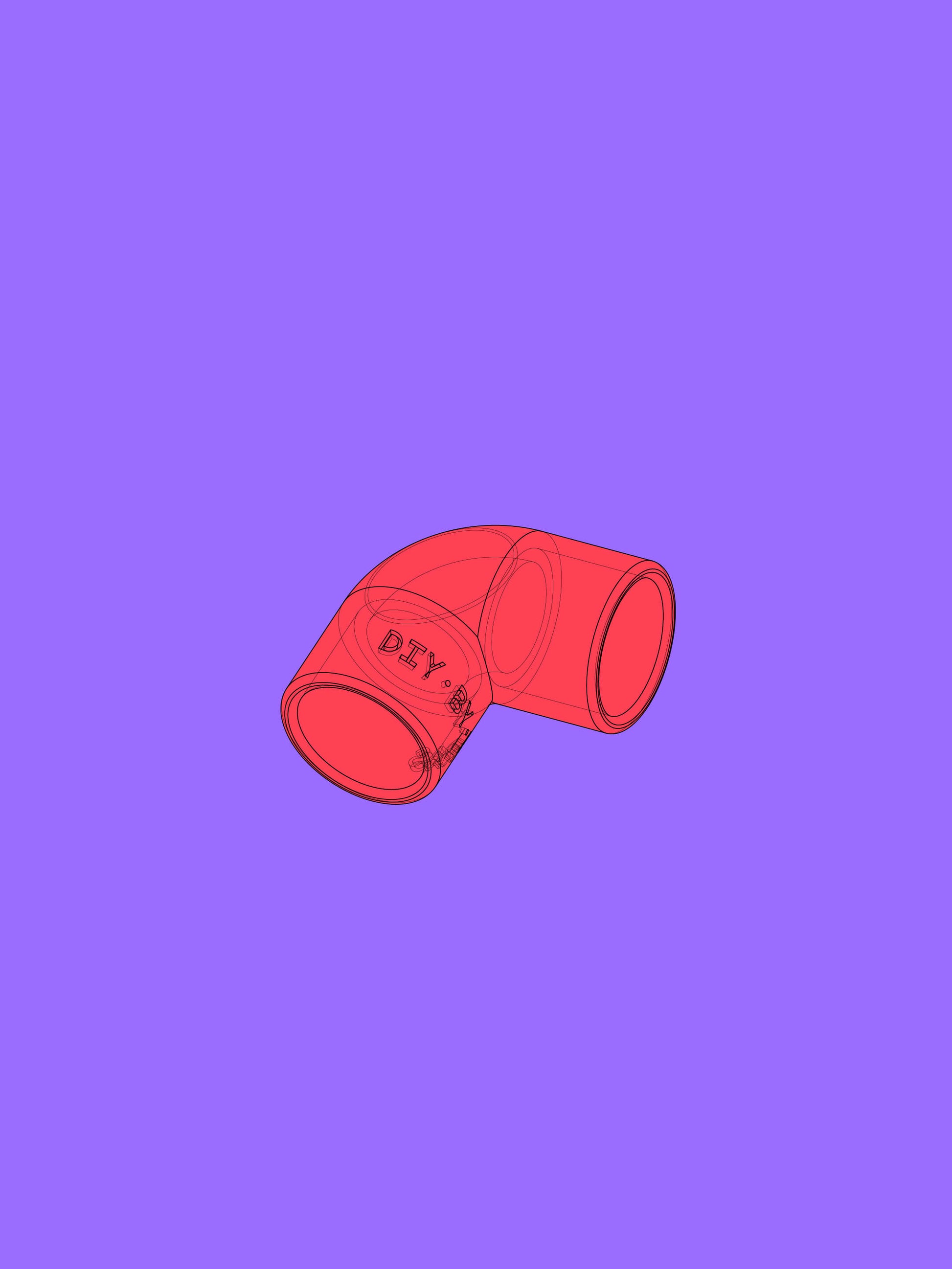

This digital file allows you to 3D print the 90° Connector 16mm designed for the DIY BY BRAS modular system.

It is intended for makers, workshops, schools, and musicians equipped with a 3D printer.

What you get

– 1 × STL file (90° Connector 16mm) – 1 × printing instructions PDF

Product description

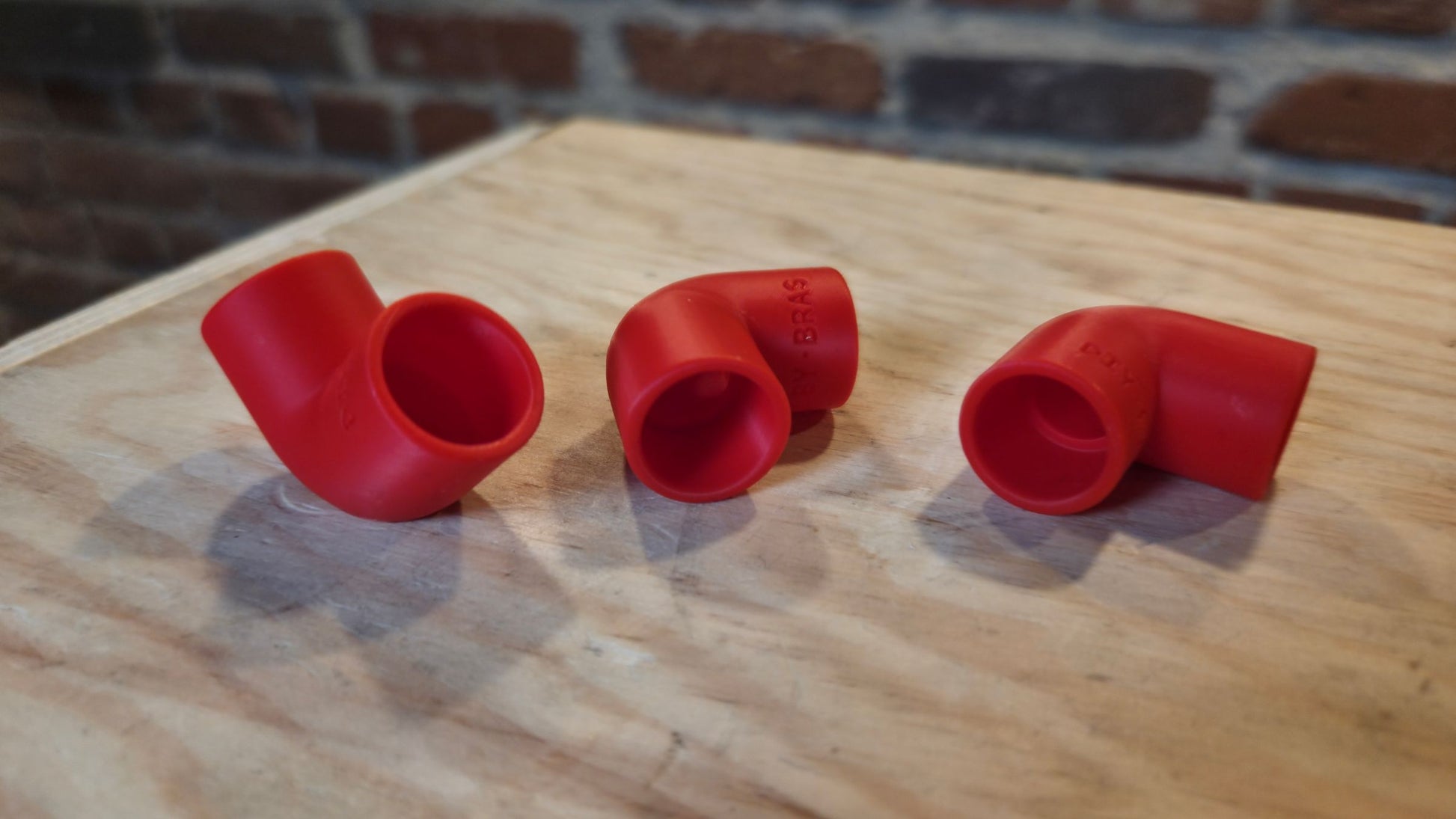

The 90° Connector 16mm is a 3D-printed air routing component designed for the DIY BY BRAS modular system.

It allows you to route airflow through 16mm pipes and to build different pipe shapes, whether as an air inlet or as part of an air column.

The design ensures smooth airflow and consistent pressure, minimizing losses while maintaining a stable response.

Dimensions & weight

– Dimensions: 4.6 × 2.8 x 2.0 cm – Weight: 7 g

Pipe compatibility

– PVC pipes – Designed for 16 mm outer diameter

⚠️ Please check your pipe diameter before printing

License included

Allowed use: – Personal use – Educational and workshop use

Not allowed: – Resale of the file – Resale of printed parts made from this file – Distribution of the file in any form

If you need a commercial license, please contact us.
