Y-Connector 25mm — DIY BY BRAS

Product description

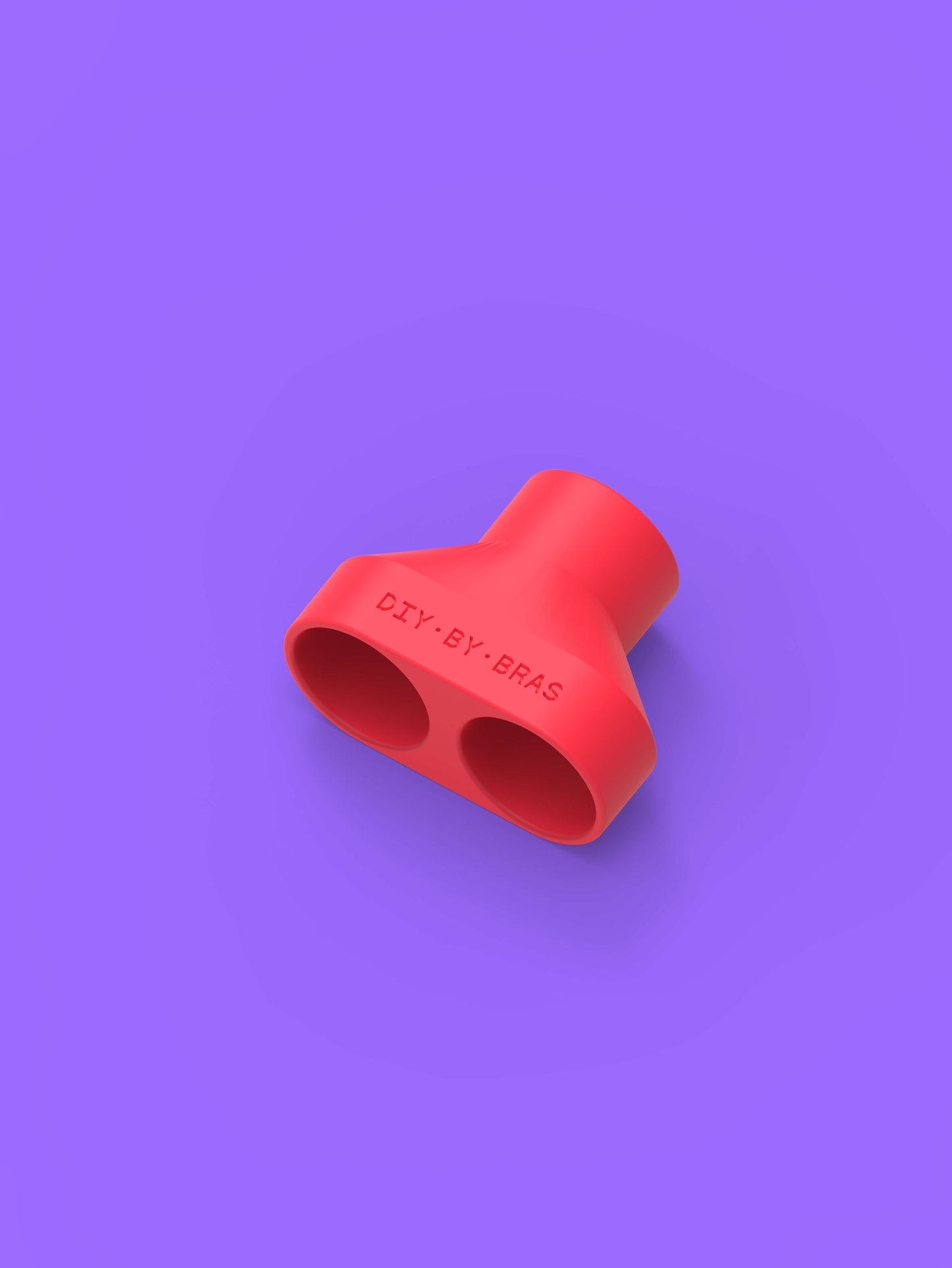

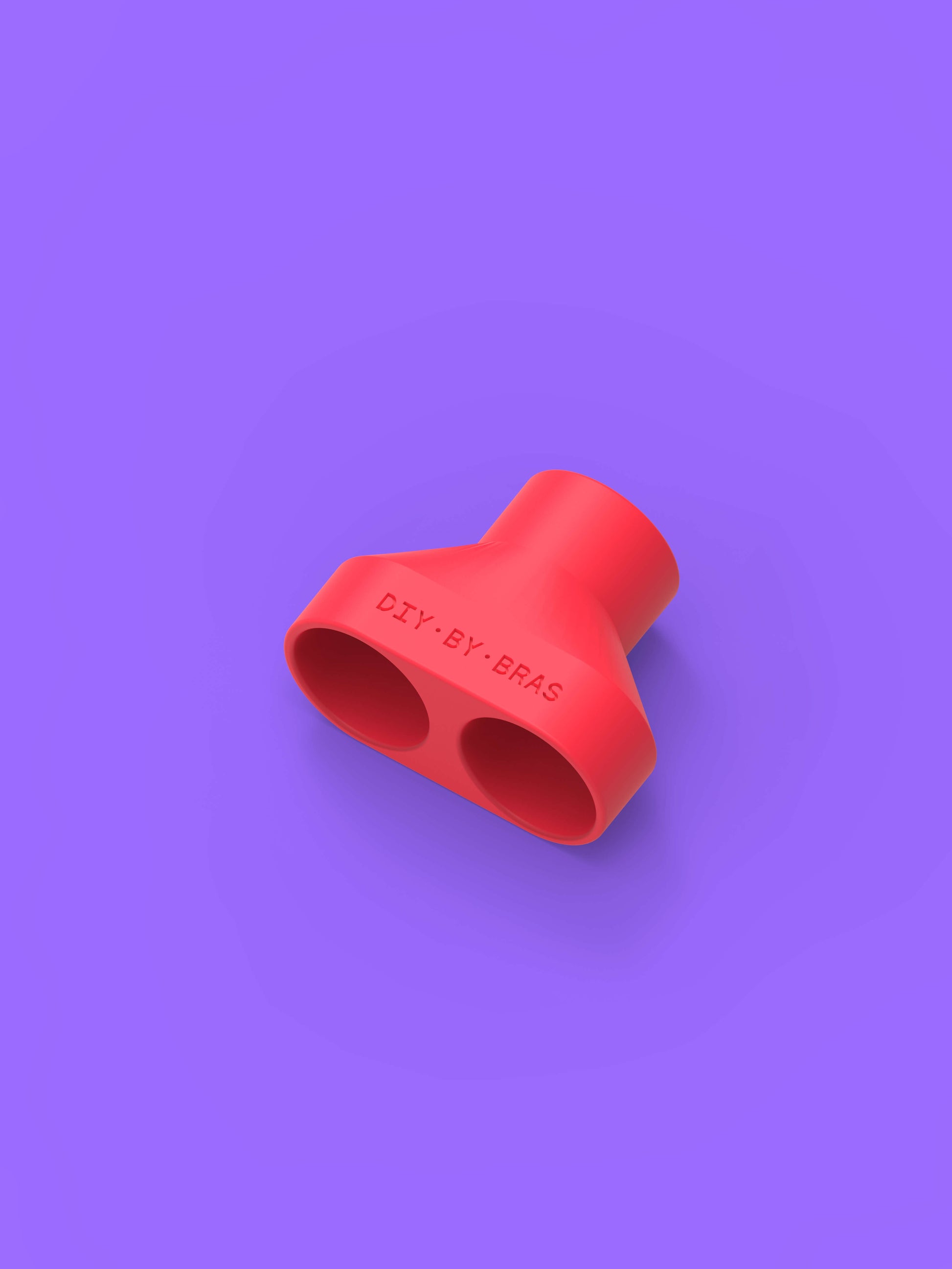

The Y Connector 25mm is a splitter part designed for the DIY BY BRAS modular system.

It is used to divide a single airflow into two separate directions, allowing you to supply air to two pipes simultaneously.
This makes it possible to build double flutes, drone configurations, and complex modular wind instrument systems using a single air source.

The Y Connector enables the creation of multi-pipe instruments while maintaining proper airflow continuity and airtight connections.

The design focuses on balanced airflow distribution, mechanical reliability, and precise alignment, ensuring consistent performance across repeated assemblies and modular configurations.

Design & features

– 3D-printed part (PLA)
– Splits airflow from one pipe into two outputs
– Enables double flutes and multi-pipe instruments
– Balanced airflow routing
– Fully compatible with the DIY BY BRAS modular system
– Lightweight, durable, and moisture-resistant

Dimensions & weight

– Dimensions: 60 × 60 × 30 mm
– Weight: 25 g

Pipe compatibility

– PVC IRL pipes (European standard)
– Compatible diameter: 25 mm outside diameter, 1.6 mm wall thickness

⚠️ Please check your pipe diameter before ordering.
