S-Connector 25mm — DIY BY BRAS

Product description

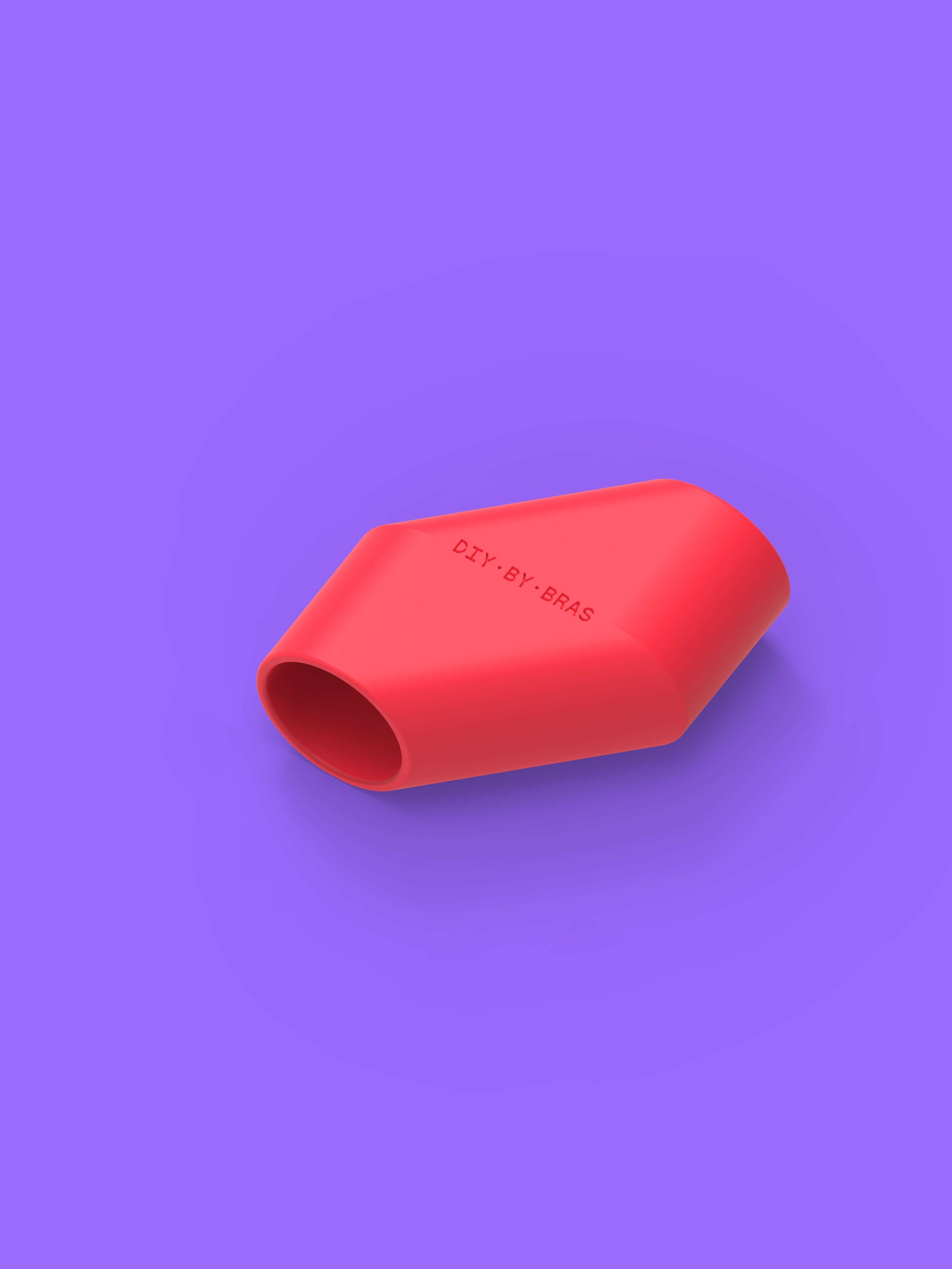

The S-Sleeve 25mm is a connector part designed for the DIY BY BRAS modular system.

It is used to connect two pipe sections while creating a lateral offset in an S shape, allowing one pipe to shift sideways relative to the other while maintaining proper alignment and airtightness.
This part is especially useful for multi-flute assemblies, parallel pipe configurations, and complex modular layouts where precise spacing between pipes is required.

The design focuses on mechanical reliability, precise alignment, and airtight connection, ensuring consistent performance across repeated assemblies and disassemblies.

Design & features

– 3D-printed part (PLA)
– S-shaped offset connector
– Allows lateral pipe offset while maintaining airtight connection
– Compatible with modular flute and multi-flute systems
– Fully compatible with the DIY BY BRAS modular system
– Lightweight, durable, and moisture-resistant

Dimensions & weight

– Dimensions: 85 x 60 x 30 mm
– Weight: 30g

Pipe compatibility

– PVC IRL pipes (European standard)
– Compatible diameter: 25 mm outside diameter, 1.6 mm wall thickness

⚠️ Please check your pipe diameter before ordering.
