Overtone Flute Head With Connector 25mm - DIY BY BRAS

Digital version available

You have a 3D printer? → This part is also available as an STL file for self-printing.

Product description

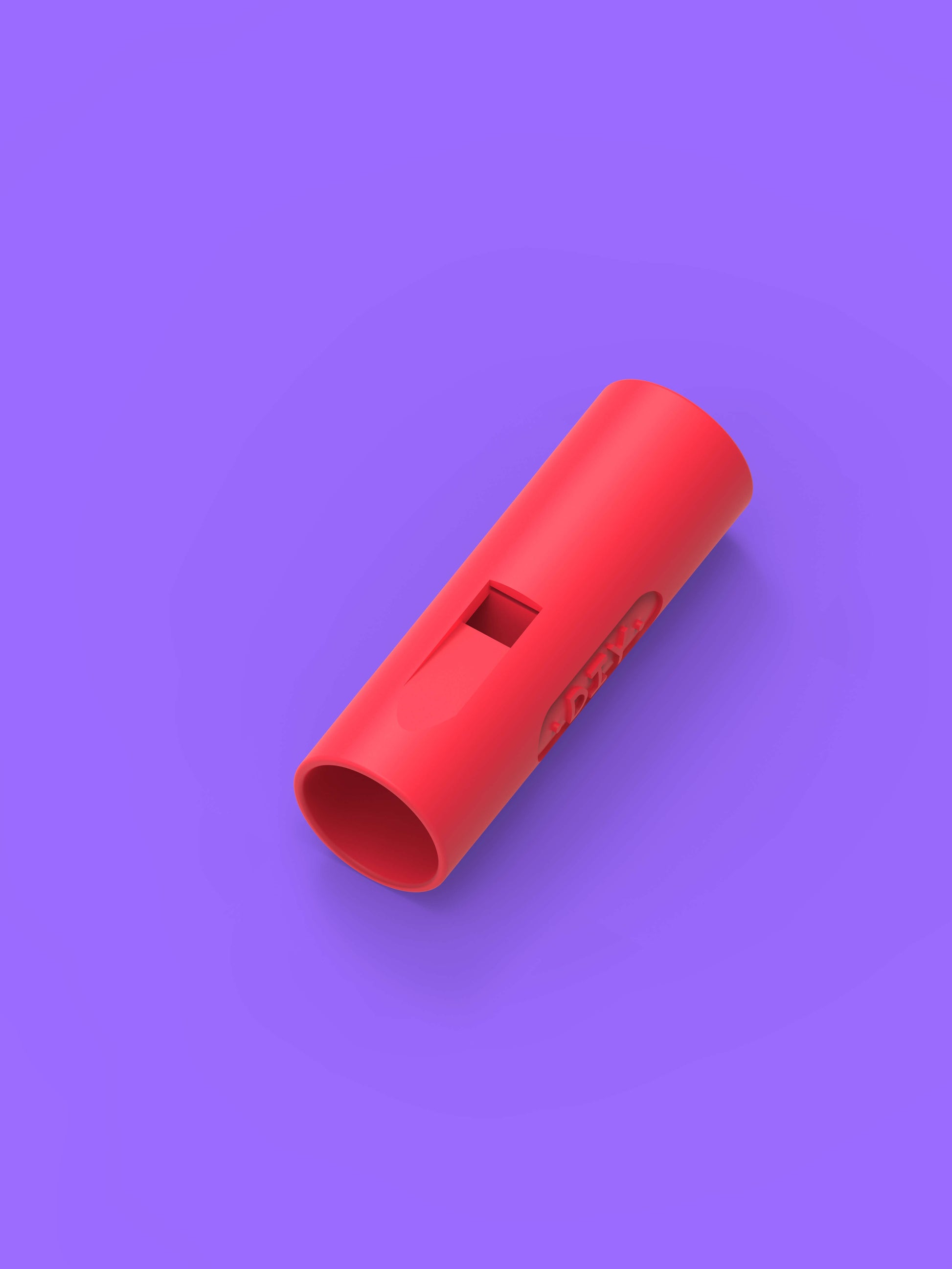

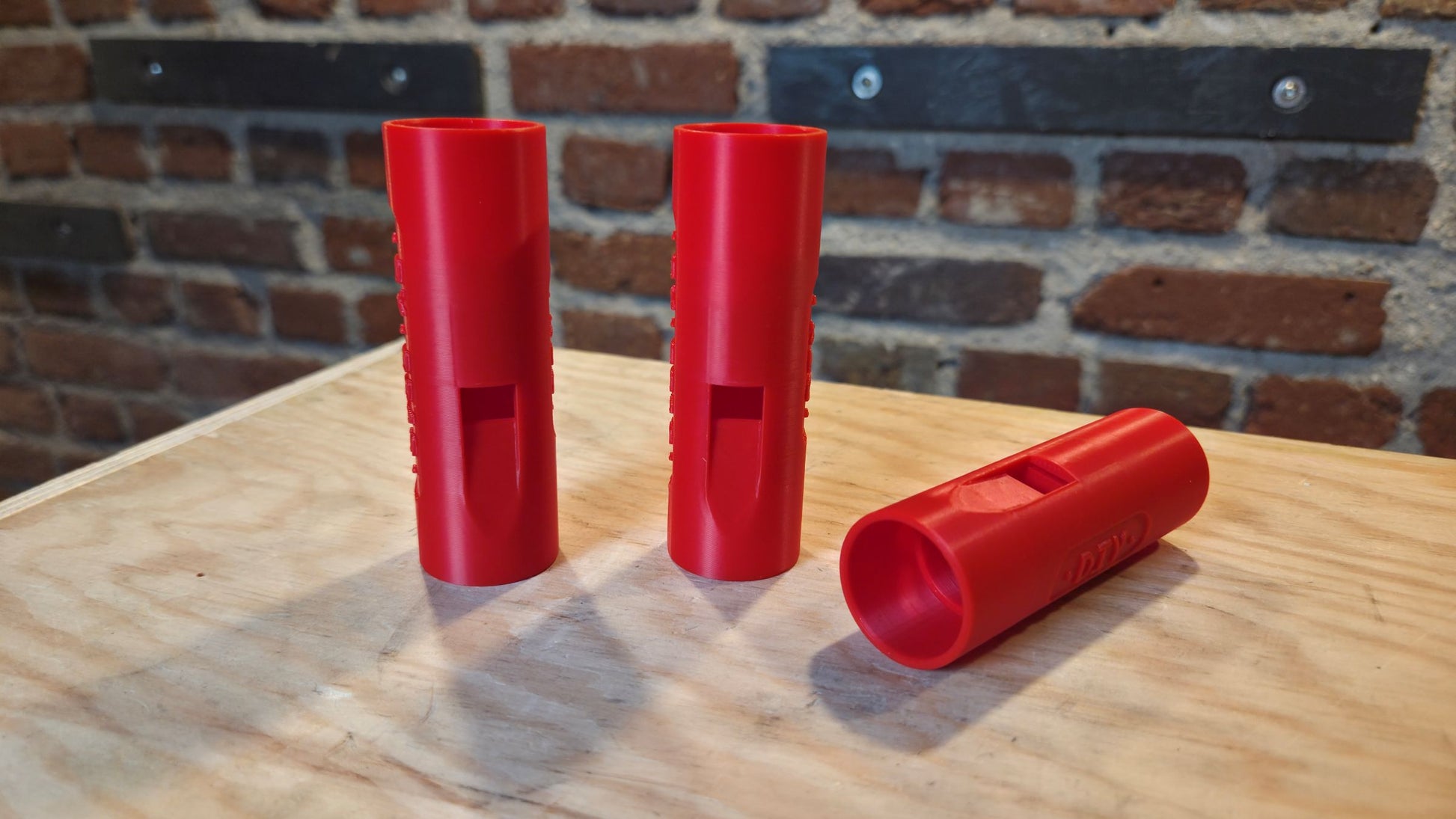

The Overtone Flute Head 25mm With Connector is a 3D-printed sound-producing head designed for the DIY BY BRAS modular system.

It integrates a connector interface, allowing it to be used in modular assemblies such as double, triple, and extended overtone flute configurations.

It shapes the airflow to produce a clear, stable tone and allows immediate sound production with no fingerings.

The design results from extensive testing to ensure reliable response, clean attack, and consistent tuning.

The head is intentionally designed slightly oversized to accommodate natural diameter variations of PVC pipes (±0.2 mm). A small roll of transparent tape is included to create a perfect airtight seal.

– 3D-printed part (PLA) – Recorder-style air channel – Integrated connector interface – Stable tuning and clean attack – Compatible with DIY BY BRAS system – Lightweight and durable

Dimensions & weight

– Dimensions: 8.8 × 2.9 × 2.9 cm – Weight: 22 g

Pipe compatibility

– PVC IRL pipes (European standard) – 25 mm outer diameter

⚠️ Please check your pipe diameter before ordering.
